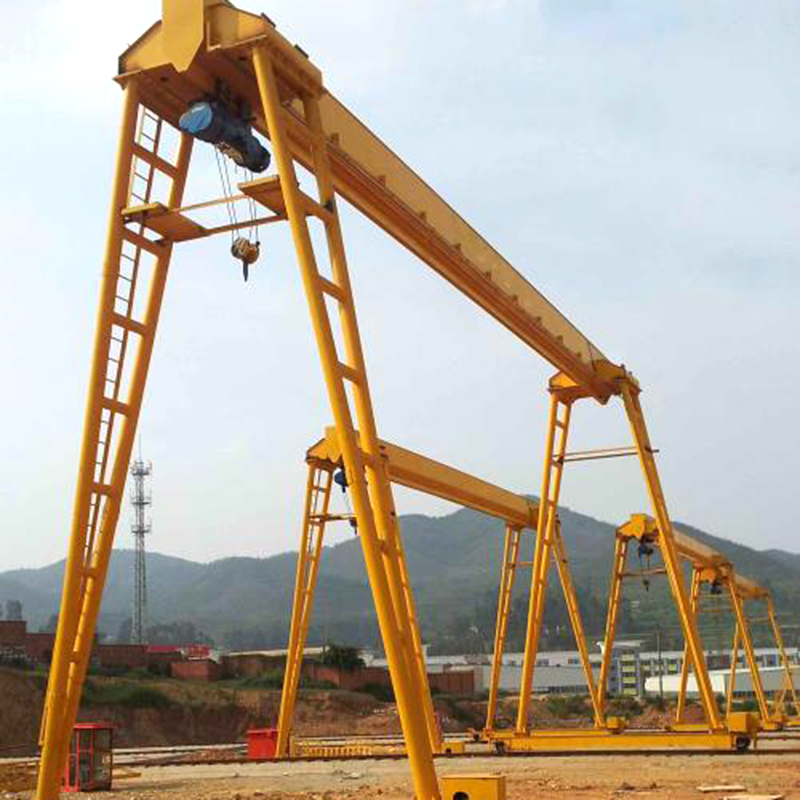

The single main beam gantry crane has a simple structure, convenient manufacturing and installation, and its own small quality, and the main beam is mostly a derailed box-shaped frame structure. Compared to double girder gantry cranes, the overall stiffness is weaker. Therefore, when the lifting weight Q ≤ 50 t and the span S ≤ 35 m, this form can be employed. The single main girder gantry crane has two types of L-shaped and C-shaped legs. The L-type is easy to manufacture and install, and the force is good, and its own quality is small. However, the space for lifting cargo through the legs is relatively small. The C-shaped legs are made to be inclined or curved, with the purpose of having a large lateral space for the goods to pass smoothly through the legs.

Gantry crane safety protection
1. Overload limiter.
2. High quality, long-term use, impact-resistant polyurethane buffer.
3. Crane travel limit switch.
4. Loss of pressure protection, phase protection.
5. Emergency parking system.
6. Lift the height limiter.

About the product: Please inform the following data so that we can confirm your needs faster!

 1. Lifting capacity.

  2. Span (track center to rail center)

  3. Lifting height (hook center grounding)

  4. Whether it needs to be overhanged (please provide the overhang length)

  5. Need rails and cables? (please provide the running length)

 6. Other special requirements
