double beam/girder gantry crane

Capacity			T	50/10	75/20	100/20
Span			m	7.5~31.5
Lifting height		Main hook	m	12	20	22
		Aux.hook	m	16	22	22
Operation method				Pendent control,wireless control,cabin control
Speed	Lifting	Main hook	m/min	5.9	5.5	3.53
		Aux.hook	m/min	13.2	9.23	7.2
	Cross travel		m/min	38.5	38.4	33.86
	Long travel		m/min	74.6	65	65.6
Lifting mechanism			type	electric winch cart
Working duty				A5,A6,A7
Power supply			AC	220/380/400/415/460V,50/60Hz, 3P

Enquiry now

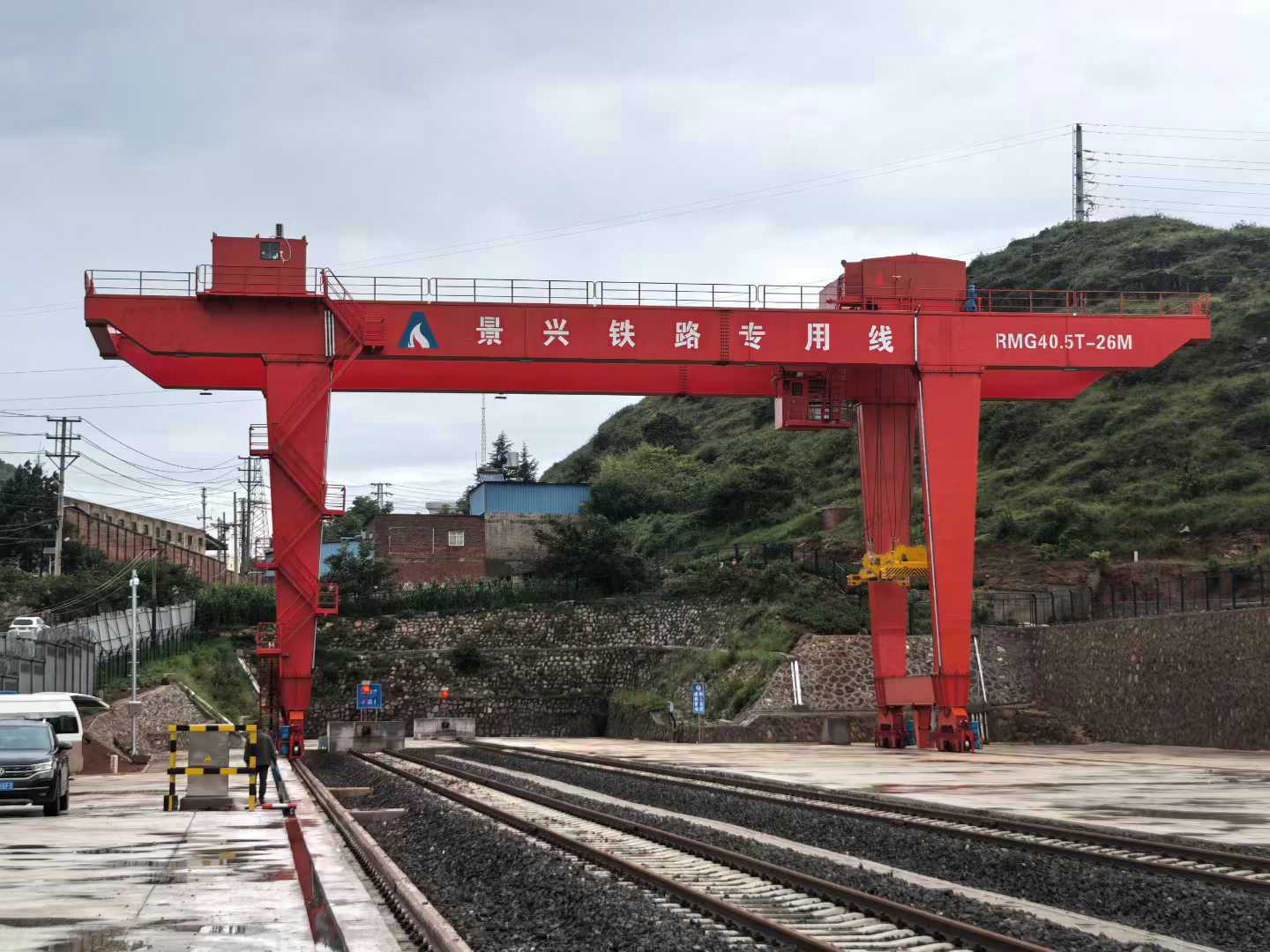

Brief introduction of double girder gantry crane

The double main girder gantry crane has strong bearing capacity, large span, good overall stability and many varieties, but its own quality is larger than that of the single main girder with the same lifting weight, and the cost is also higher.According to the main beam structure, it can be divided into two types:Box beam and truss.Generally, a box-shaped structure is used.

ProductionConfiguration & production technology

Beam	High technique, torsion-free box girders, no welding one whole type, strong and beautiful
Electrical parts:	Siemens brand/Schneider brand
Motors	Frequent starting , reversing & braking, dust proof construction foot / flange mounted TESC / TEFC , Sq.Cage motors with integrated safety brakes, insulation class F, IP54 protection for hoisting, CT & LT motions.
Brakes	Independent Hydraulic Brake
Gear Box	Accurate hob cut helical / spur gears & pinions having hardness 250 to 350 BHN made from carbon alloy steel, smooth operation & long life, can equipped with SEW/ABB brand high quality gear box
Electrical Panel	Modular design, ease to install and maintain, reliable operation, fuses less circuitry, ducted wiring and compact terminals.Motor overload protection to prevent overloading If cabin control, it can be equipped with Air-conditioning and with easy and conveniet control panel.
Limit Switch	Safety limit switches for stoppers will be provided to prevent over traveling in all motions
Safety feature	Overload protection.Main lifting motor with thermal protection.Hooks with latch.Rubber buffers.Protective earthing.Crane switch and travel end switch.Emergency switch can stop all movement when any dangerous happened.Sub-assemblies characteristic are tested before assembly.All cranes must be pre-assembled and tested before leaving factory and offer the certification of test

Features and Advantages:
1) Reasonable structure
2) Favorable performance
3) Smooth starting and stopping
4) Safe and reliable traveling
5) Low noise, commodious cabin and good view
6) Convenient maintenance, excellent exchangeability for parts and components
7) Energy saving,reduce energy consumption
8) Using transducer for travelling or traversing crane to realize step speed or stepless speed change
9)Primer and finishing paint
10)Crane structure:Steel box type

In order to give you correct quotation ,Please let us know the following Specification :
1.Lift capacity ?
2- With or without overhang?One side or two side ?
3- Lifting height ?
4- the Span of the main girder ?
5- power supply:In china is 380V/50Hz/3phase ,how about in your factory ?
6- Travel distance ?Do you need to buy the travel rails from us also ?
7.Feel Free to contact us at anytime, Hope can become your partners in the near future,

After-Sales Service:
Our after-sales service provide:
1.14 months warranty when products leave the factory, or 12 months warranty after installation
2. 2 years spare-parts provided for better maintenance.
3.Professional technical staffs provide installation, commissioning and training services.
4.Delivery with English user manual, parts manual, product certification and other relevant certificates.
5.Technical advisory for any time and Engineers available to service machinery overseas.
